Main Specifications：
| Model | Capacity | Readability（d） | Repeatability | Linearity | Max. O/T | e=10d | Temp. | Humidity |
|---|---|---|---|---|---|---|---|---|
| SH-R200B | 2000g | 0.01g | ±0.05g | ±0.02g | 2000g | 0.1g | 15-30℃ | (40-80)%RH |
| SH-R200S | 2000g | 0.1g | ±0.4g | ±0.02g | 2000g | 1g | 5-35℃ | (40-85)%RH |
| SH-R300B | 3000g | 0.01g | ±0.05g | ±0.02g | 3000g | 0.1g | 5-35℃ | (40-85)%RH |
| SH-R300S | 3000g | 0.1g | ±0.4g | ±0.2g | 3000g | 1g | 5-35℃ | (40-85)%RH |
| SH-R500S | 5000g | 0.1g | ±0.4g | ±0.2g | 5000g | 1g | 5-35℃ | (40-85)%RH |
| SH-R600S | 6000g | 0.1g | ±0.4g | ±0.2g | 6000g | 1g | 15-30℃ | (40-80)%RH |
| SH-R1200S | 12000g | 0.1g | ±0.4g | ±0.2g | 12000g | 1g | 15-30℃ | (40-80)%RH |
| SH-R1500S | 15000g | 0.1g | ±0.4g | ±0.2g | 15000g | 1g | 15-30℃ | (40-80)%RH |
| SH-R2000S | 20000g | 0.1g | ±0.4g | ±0.2g | 20000g | 1g | 15-30℃ | (40-80)%RH |
Main Characteristic：
| Sensor type | Strain gauge load cell | |||
|---|---|---|---|---|
| Calibration Way | Weight calibration | |||
| Anti-vibration | Adjustable wave filter intensity function | |||
| Housing | Fully Aluminum | |||
| Display | VATN Backlit LCD Display | |||
| Stable time | 3-10s Adjustable | |||
| Unit | g, mg, ct, oz, ozl, dwt, GN, lb, N, dr,tlT, tls, tlH,T(Tola), T/A/R(tola/anna/rati), /A/R(tola/Mna/rati), ms(Mesghal), bat, /lb(Partsper pound),kg,20units selectable | |||

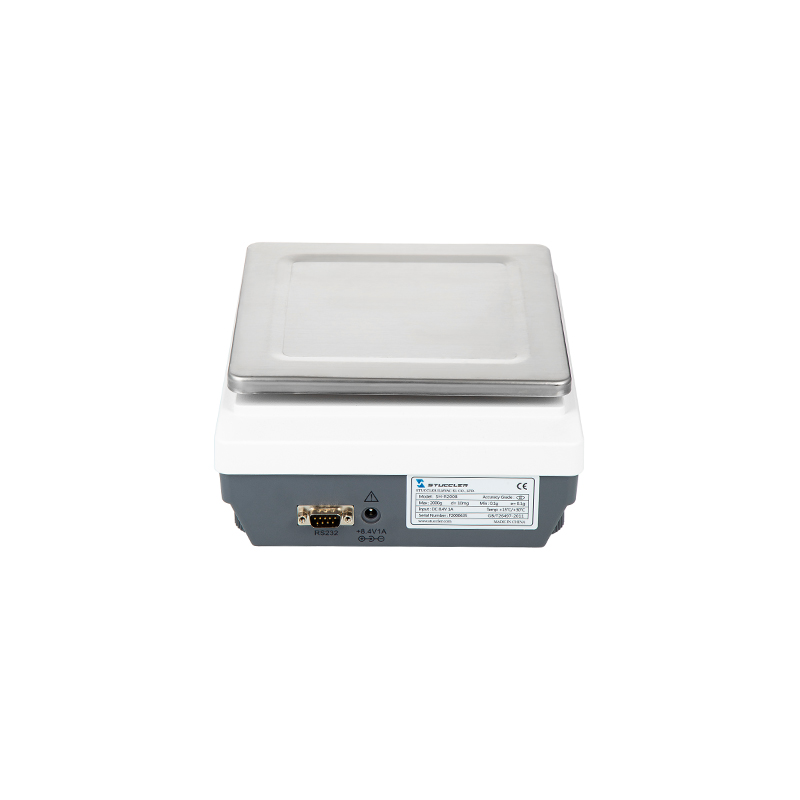

| Interface | RS232 | |||
| Weighing Mode Lock | Weighing Mode Lock Automatically | |||
| Underhook | Fit with Underhook | |||
| housing size without a shield | 310x200x95mm | |||
| housing size with shield | 310x200x270mm | |||
| Plate Size | 190x190mm | |||
| Power Supply | DC8.4v1A | |||
