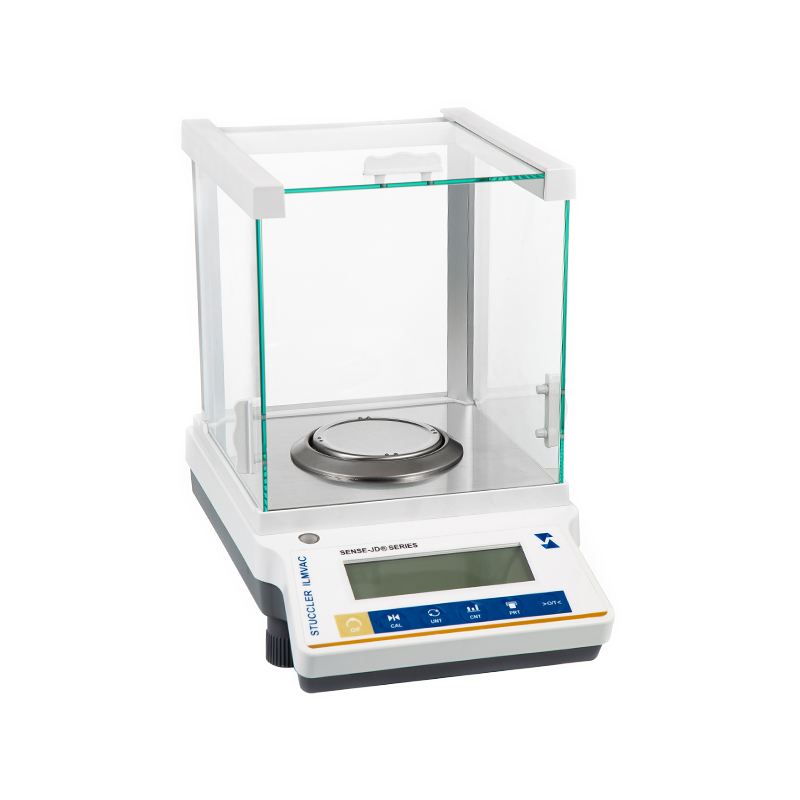

1mg/0.01ct high precision jewelry balance with Electromagnetic sensors and internal cal

SensorStructure	Electromagnetic sensors
Calibration Way	Fully Automatic Internal CAL(User-set time and temperature to trigger out the calibration automatically)
Anti-vibration Level	Six level anti-vibration adjustable function
Capacity	220g-620g
Readability（d）	1mg/0.001g

SensorStructure

Electromagnetic sensors

Calibration Way

Fully Automatic Internal CAL(User-set time and temperature to trigger out the calibration automatically)

Anti-vibration Level

Six level anti-vibration adjustable function

Capacity

220g-620g

Readability（d）

1mg/0.001g

Main Specifications：

Model	Capacity	Readability（d）	Repeatability	Linearity	Max. O/T	e=10d	Temp.	Humidity
JD-R22Q	220g/1100ct	1mg/0.01ct	±1mg	±2mg	220g/1100ct	10mg	15-30℃	(40-80)%RH
JD-R32Q	320g/1600ct	1mg/0.01ct	±1mg	±2mg	320g/1600ct	10mg	15-30℃	(40-80)%RH
JD-R52Q	520g/2600ct	1mg/0.01ct	±1mg	±2mg	520g/2600ct	10mg	18-23℃	(50-70)%RH
JD-R62Q	620g/3100ct	1mg/0.01ct	±1mg	±2mg	620g/3100ct	10mg	18-23℃	(50-70)%RH

SensorStructure	Electromagnetic sensors
Calibration Way	Fully Automatic Internal CAL(User-set time and temperature to trigger out the calibration automatically)
Anti-vibration Level	Six levels anti-vibration adjustable function
Housing	Fully Aluminum + ABS
Display	VATN Backlit LCD Display
Stable time	3-10s Adjustable
Unit	g, mg, ct, oz, ozl, dwt, GN, lb, N, dr,tlT, tls, tlH,T(Tola), T/A/R(tola/anna/rati), /A/R(tola/Mna/rati), ms(Mesghal), bat, /lb(Partsper pound),kg,20units selectable
Interface	RS232
Weighing Mode Lock	Weighing Mode Lock Automatically
Underhook	Fit with Underhook
housing size with sheild	340x215x315mm
Plate Size	φ90mm
Power Supply	AC220V±10%, 50.60Hz
