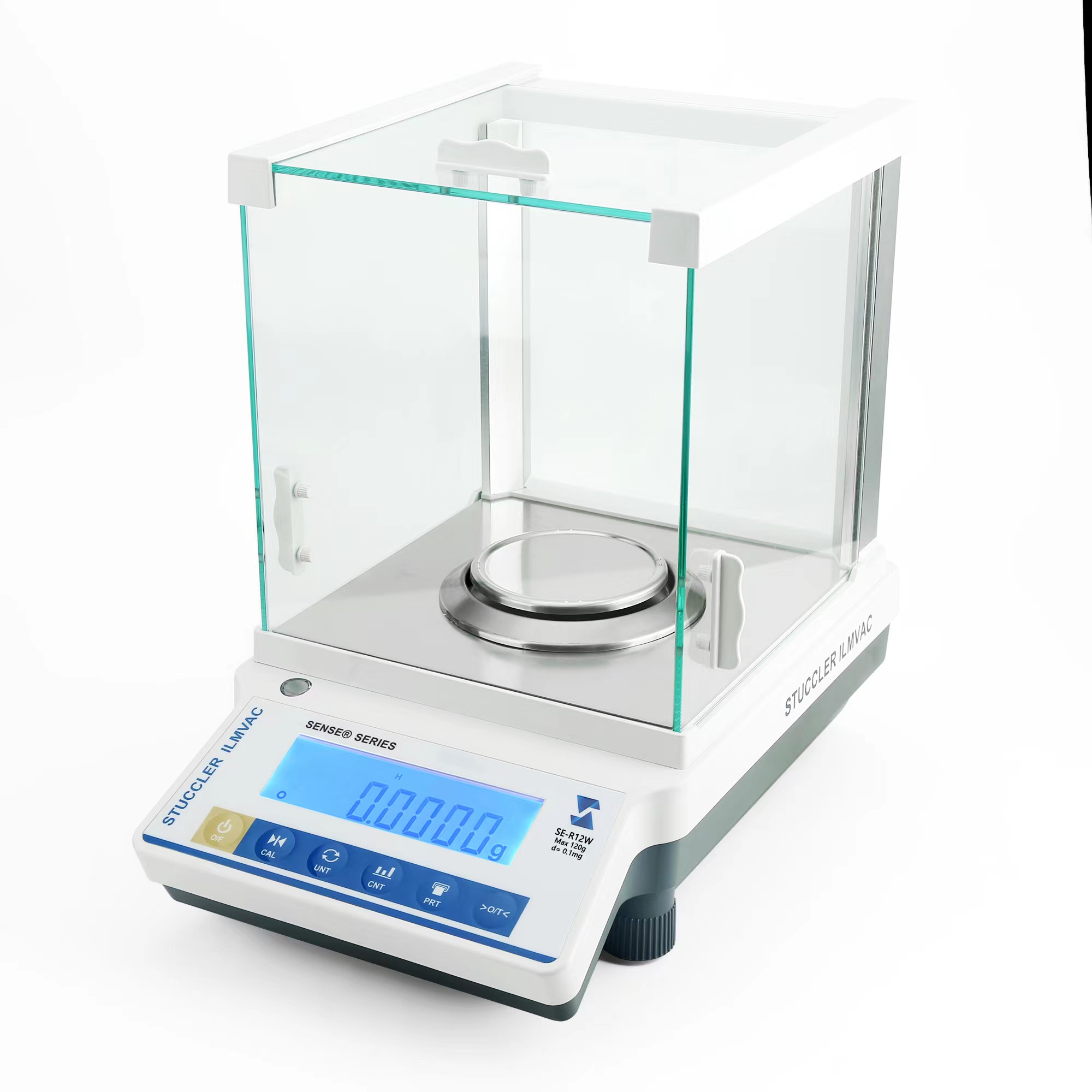

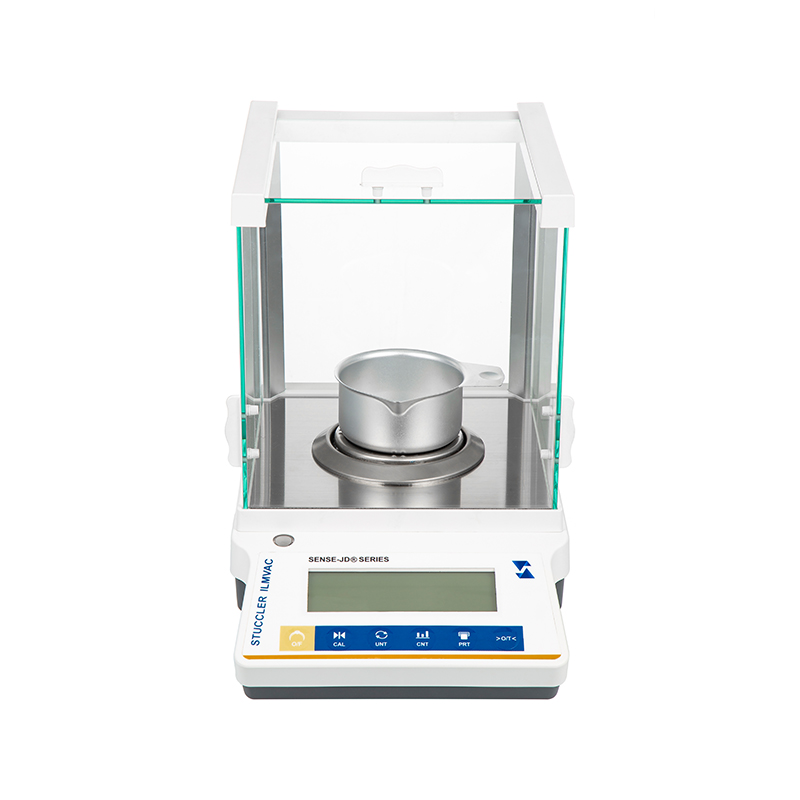

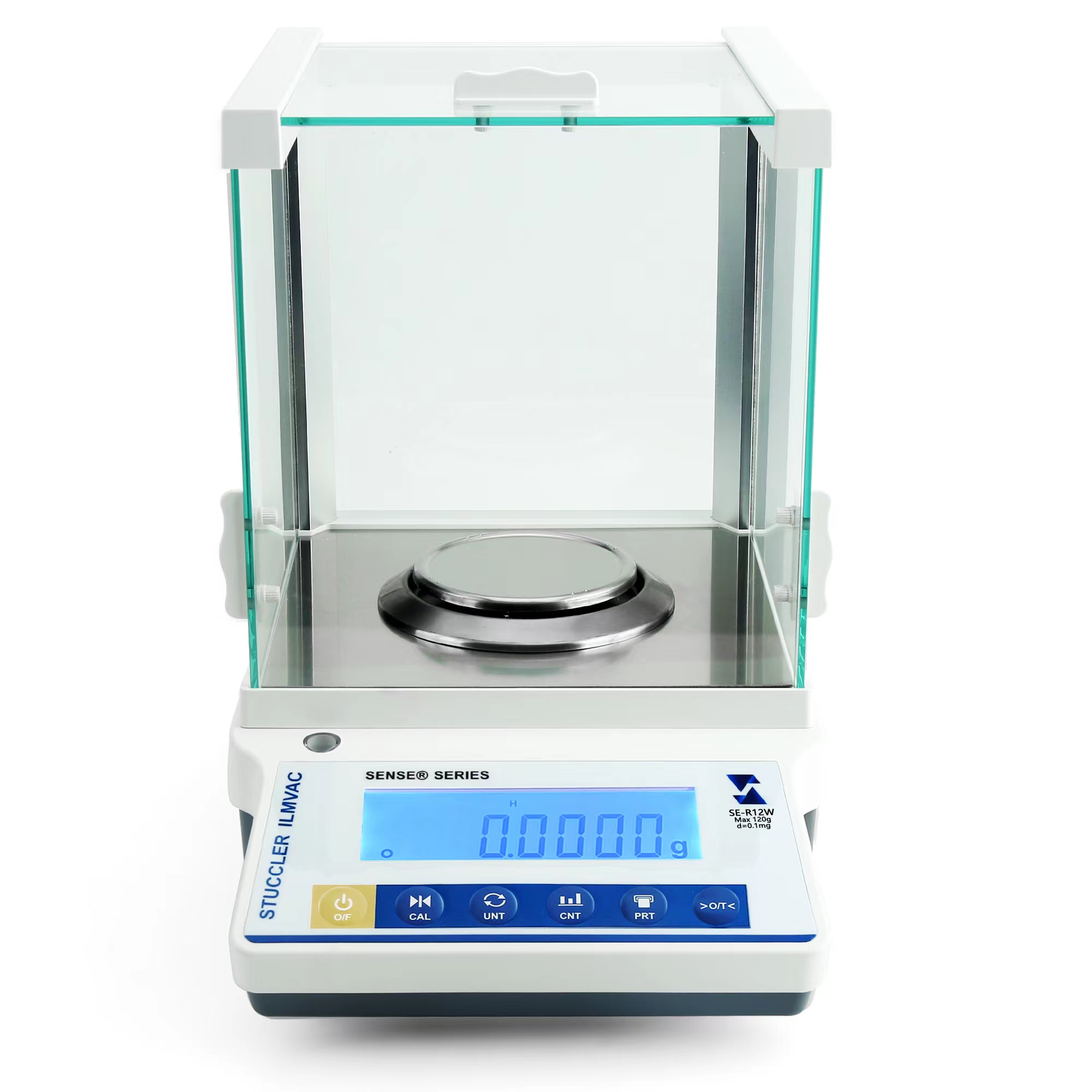

0.1mg (0.001ct) Analytical Balance with Electromagnetic sensors and interal cal for jewelry weighing

Sensor Type	Electromagnetic (EMFC)
Calibration Way	Fully Automatic Internal CAL(User-set time and temperature to trigger out the calibration automatically)
Anti-vibration	Adjustable wave filter intensity function
Capacity	120g-320g
Readability（d）	0.1mg (0.001ct)

Sensor Type

Electromagnetic (EMFC)

Calibration Way

Fully Automatic Internal CAL(User-set time and temperature to trigger out the calibration automatically)

Anti-vibration

Adjustable wave filter intensity function

Capacity

120g-320g

Readability（d）

0.1mg (0.001ct)

Main Specifications：

Model	Capacity	Readability（d）	Repeatability	Linearity	Max. O/T	e=10d	Temp.	Humidity

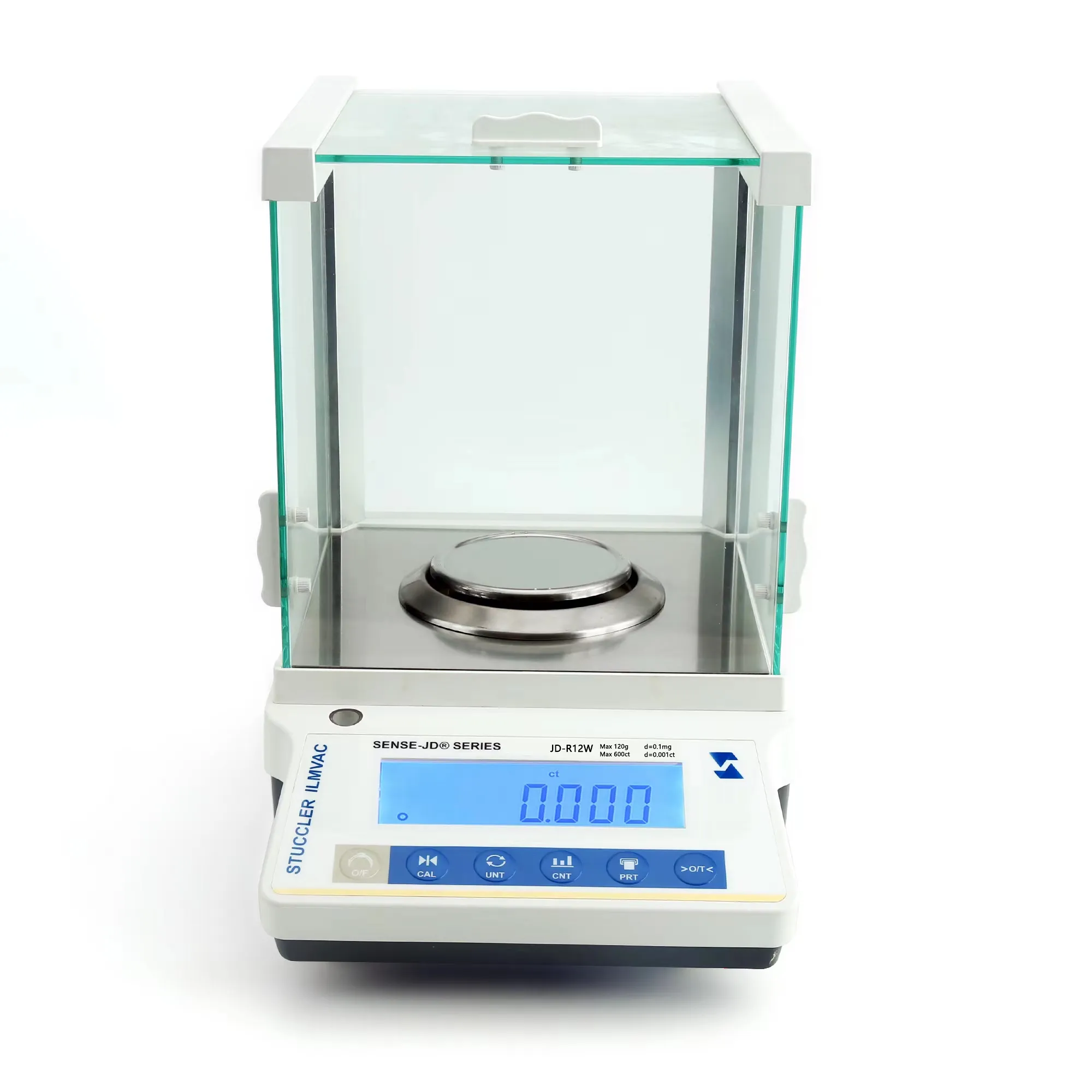

JD-R12W	120g/600ct	0.1mg/0.001ct	±0.1mg	±0.2mg	120g/600ct	1mg	18-23℃	(50-70)%RH

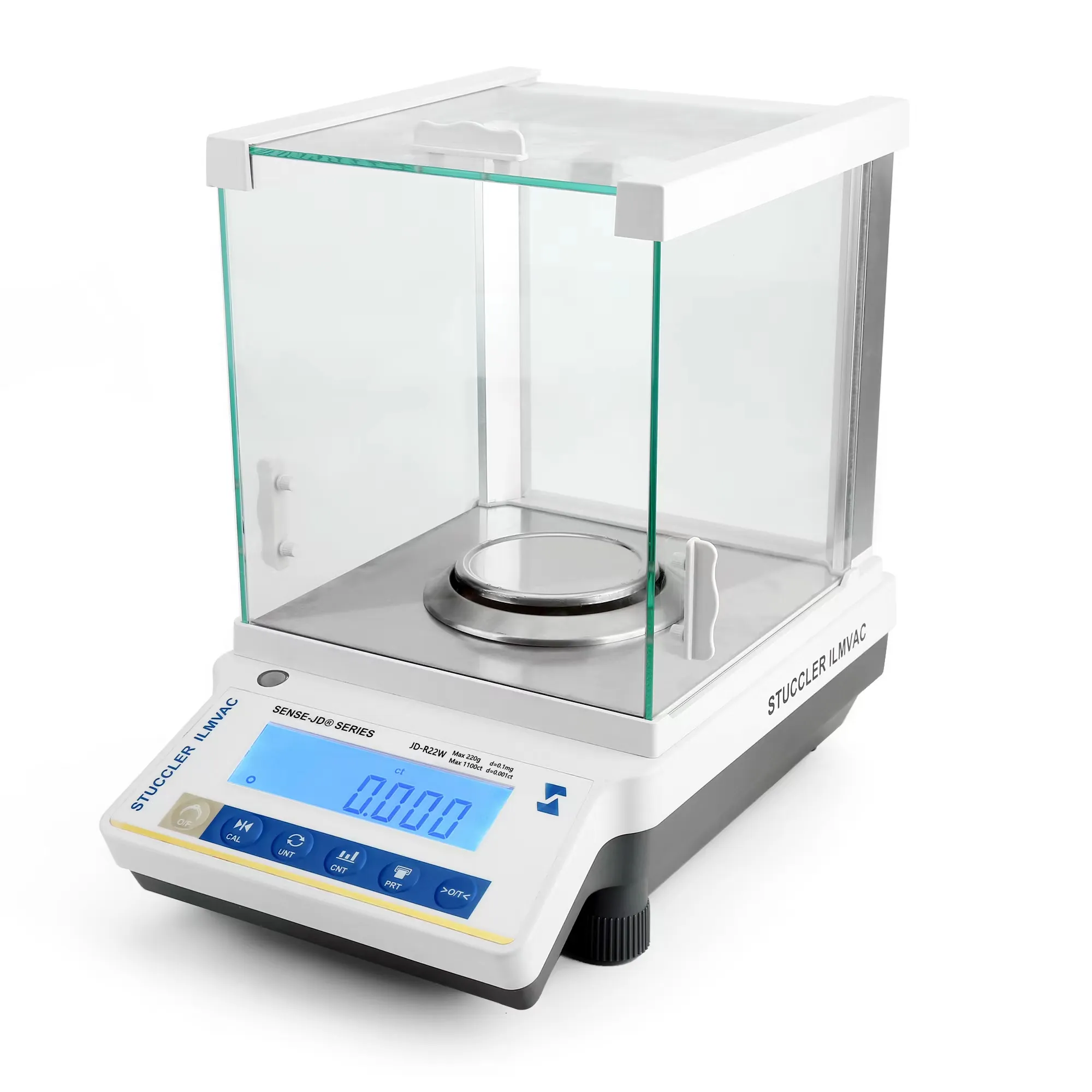

JD-R22W	220g/1100ct	0.1mg/0.001ct	±0.1mg	±0.2mg	220g/1100ct	1mg	18-23℃	(50-70)%RH
JD-R32W	320g/1600ct	0.1mg/0.001ct	±0.1mg	±0.2mg	320g/1600ct	1mg	18-23℃	(50-70)%RH

Sensor Type	Electromagnetic (EMFC)
Calibration Way	Fully Automatic Internal CAL (User-set time and temperature to trigger out the calibration automatically)
Anti-vibration Level	Adjustable wave filter intensity function
Housing	Fully Aluminum + ABS
Display	VATN Backlit LCD Display
Stable time	3-10s Adjustable
Unit	g, mg, ct, oz, ozl, dwt, GN, lb, N, dr,tlT, tls, tlH,T(Tola), T/A/R(tola/anna/rati), /A/R(tola/Mna/rati), ms(Mesghal), bat, /lb(Partsper pound),kg,20units selectable

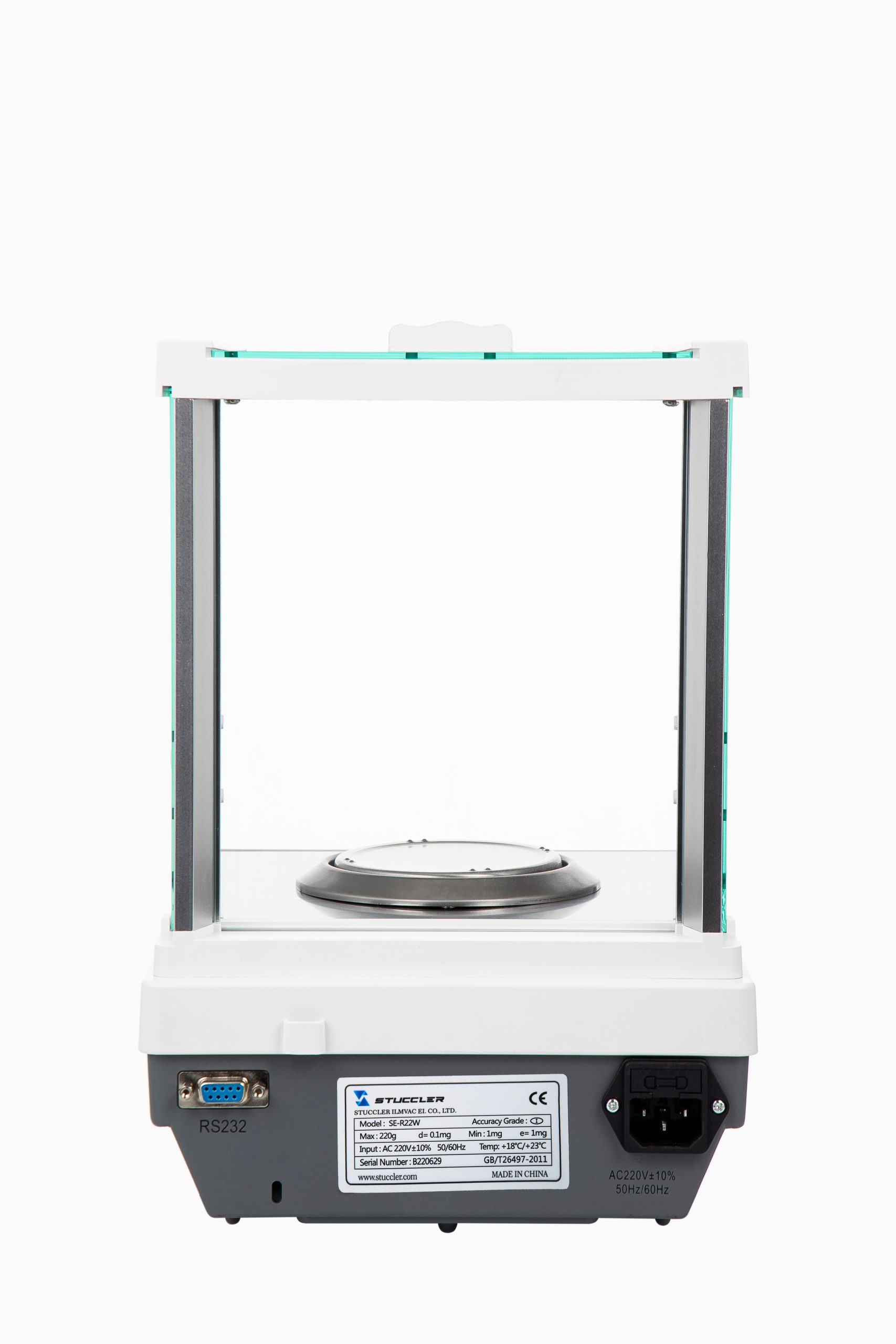

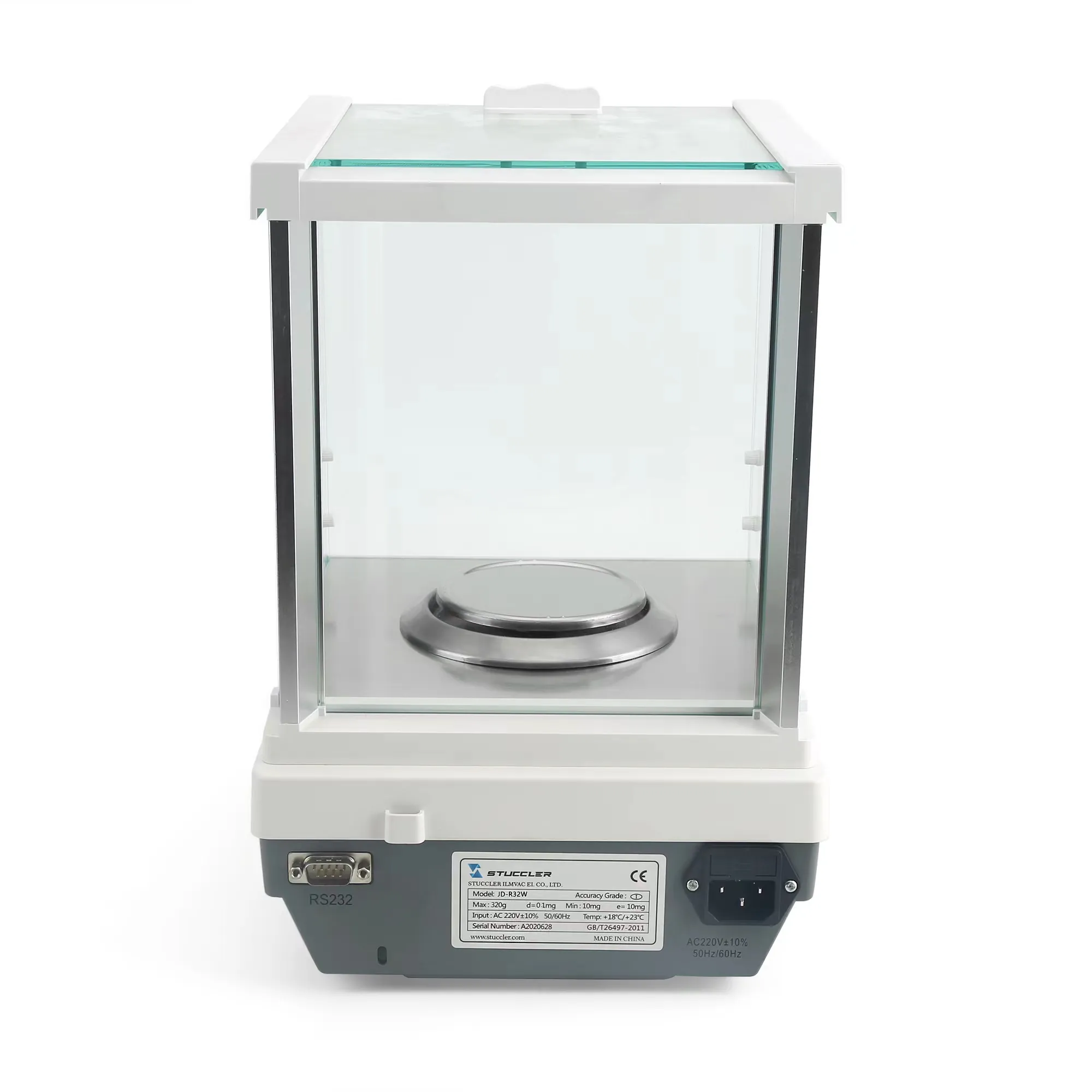

Interface	RS232
Weighing Mode Lock	Weighing Mode Lock Automatically
Underhook	Fit with Underhook
housing size with shield	340x215x315mm
Plate Size	φ90mm
Power Supply	AC220V±10%, 50.60Hz
